Ring Joint Gaskets - Enhancing Sealing Performance in Demanding Applications
On this page
In the realm of industrial sealing solutions, the API 6A Ring Joint Gasket (RJG) stands out as a robust and efficient choice. Created for high-pressure and high-temperature environments, these gaskets ensure leak-free performance in critical applications. Built with carbon steel and boasting a hardness value of 120HB, the RX series RJGs provide exceptional sealing capabilities in even the most demanding conditions.
The API 6A standard, established by the American Petroleum Institute, sets the benchmark for equipment used in the oil and gas industry. Specifically, API 6A focuses on wellhead and Christmas tree equipment, which are vital components in the extraction and production of hydrocarbons. Within this standard, the RJG plays a pivotal role in preventing leakages and maintaining operational safety. The carbon steel construction of the RJG makes it ideal for use in tight spaces and withstands extreme pressures.

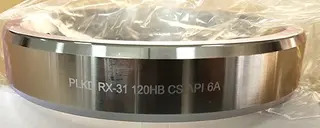

The main advantage of the RX series RJG lies in its ability to create a reliable and gas-tight seal. The design incorporates a metal-to-metal sealing principle, which ensures excellent resistance to thermal and mechanical loads. The RX series features a modified octagonal cross-section that enhances sealing performance while facilitating easy installation and removal. The unique geometry allows for optimal gasket stability and reduces the risk of extrusion and leakage.
The metal-to-metal sealing principle employed in the RX series RJGs ensures a robust and reliable seal. The gasket is designed to deform under compressive load, filling all the gaps and imperfections on the flange surface. As the load is applied, the gasket material is pressed against the flange surfaces, creating a tight and secure seal that prevents any leakage.
The modified octagonal cross-section design of the RX series plays a crucial role in enhancing sealing performance. This design feature allows for better contact between the gasket and the flange surface, maximizing the effectiveness of the seal. The octagonal shape provides multiple sealing points, creating a more secure and gas-tight seal. It also enables the gasket to withstand high pressures and temperature fluctuations without compromising its sealing integrity.
The unique geometry of the RX series RJGs also simplifies the installation and removal processes. The gasket can be easily positioned on the flange, and the octagonal shape ensures proper alignment. This saves time and effort during installation or maintenance procedures, reducing downtime and increasing operational efficiency. The gasket can be easily removed without leaving any residue or damaging the flange surface, allowing for easy replacement or inspection as needed.
Another advantage of the RX series RJGs is their ability to withstand thermal cycling. In some applications, the gasket is subjected to extreme temperature variations, which can cause the flange and gasket to expand and contract at different rates. This thermal cycling can lead to stress and potential leakage. However, the metal-to-metal sealing principle of the RX series ensures that the gasket maintains its seal even under these conditions. The gasket material deforms and adjusts to the changing dimensions of the flange, maintaining a tight and secure seal throughout the thermal cycling process.
The RX series RJGs also exhibit excellent resistance to extrusion and leakage. The combination of the metal-to-metal sealing principle and the modified octagonal cross-section design creates a sealing force that prevents the gasket from extruding into the sealing gap or leaking under high pressures. This ensures the integrity of the seal, minimizing the risk of costly leaks and ensuring safe and efficient operations.
Overall, the RX series RJGs offer enhanced sealing performance in demanding industrial environments. Their metal-to-metal sealing principle, combined with the modified octagonal cross-section design, provides a reliable and gas-tight seal that withstands high pressures, temperature fluctuations, and thermal cycling. The gaskets' resistance to extrusion and leakage further enhances their sealing capabilities, reducing the risk of downtime, improving operational efficiency, and ensuring safety in critical applications. Whether in the oil and gas industry, power generation plants, or chemical processing facilities, the RX series RJGs are a trusted choice for sealing solutions. 1. Oil and Gas Industry
In the oil and gas industry, the API 6A RJG finds extensive application in wellheads, flanges, and other critical sealing points. These gaskets play a crucial role in preventing hazardous fluids, such as hydrocarbons and drilling mud, from escaping into the environment. The RX series RJGs, with their carbon steel construction, provide exceptional resistance to corrosion, making them suitable for offshore installations and onshore facilities subjected to harsh conditions.
Furthermore, the enhanced sealing performance of the RX series RJGs ensures the integrity of the sealing system, preventing any leakage that could lead to safety hazards or equipment failure. The metal-to-metal sealing principle and modified octagonal cross-section design of the RX series gaskets enable them to withstand high pressures and temperature fluctuations commonly encountered in the oil and gas industry.
The API 6A RJGs are specifically designed to meet the stringent requirements of the oil and gas industry. They are tested and certified to the API 6A standard, ensuring their compatibility and reliability in critical applications. These gaskets are known for their durability and long service life, reducing the need for frequent maintenance and replacements, which in turn minimizes downtime and increases operational efficiency.
The oil and gas industry often operates in extreme environments, including high-pressure and high-temperature conditions. The RX series RJGs are manufactured using advanced technologies and premium materials, allowing them to perform reliably under these challenging conditions. Their resistance to extrusion and leakage ensures that the gaskets maintain their seal even with the presence of corrosive fluids, extreme pressures, and thermal cycling.
Moreover, the ease of installation and removal of the RX series RJGs is particularly advantageous in the oil and gas industry. These gaskets can be quickly and efficiently installed during construction or maintenance activities, saving valuable time and reducing labor costs. The octagonal shape and optimal gasket stability make alignment and positioning easier, ensuring a proper seal with minimal effort. During inspections or replacements, the gaskets can be easily removed, enabling prompt repairs or modifications as necessary.
Additionally, the RX series RJGs’ resistance to corrosion is crucial in the oil and gas industry. The presence of corrosive fluids, such as hydrogen sulfide or sulfuric acid, places significant stress on sealing components. The carbon steel construction of the RX series gaskets provides excellent corrosion resistance, increasing their lifespan and reliability while minimizing the risk of leaks or failures.
Furthermore, the safety implications of reliable sealing in the oil and gas industry cannot be overstated. Leakage of flammable or toxic fluids can lead to severe accidents, environmental damage, and loss of life. The RX series RJGs’ enhanced sealing performance ensures the containment of hazardous materials, promoting a safe working environment and compliance with regulatory standards.
In conclusion, the RX series RJGs offer significant benefits in the oil and gas industry. Their ability to provide a reliable and gas-tight seal, even in extreme conditions, ensures the containment of hazardous fluids and prevents leaks that could lead to safety hazards or equipment failure. The resistance to corrosion and ease of installation and removal further enhance their suitability for the demanding environments of the oil and gas industry. As such, the RX series RJGs are a trusted choice in this critical sector, contributing to operational efficiency, safety, and environmental protection.
2. Power Generation
Power generation plants operate at high pressures and temperatures, making reliable sealing solutions essential. The RX series RJGs are widely used in steam turbines, boiler feed pumps, and heat exchangers. Their ability to withstand thermal cycling and maintain sealing integrity ensures efficient and safe operation of these power generation facilities.
3. Chemical Processing
Chemical plants deal with corrosive chemicals, aggressive acids, and caustic substances. The RX series RJGs, with their robust carbon steel construction and high hardness value, exhibit excellent resistance to corrosion and can effectively seal flanges in chemical processing equipment. Typical applications include reactors, distillation columns, and storage tanks. In conclusion, the API 6A Ring Joint Gasket, RX series, offers outstanding sealing performance in demanding industrial applications. Built with carbon steel and possessing a hardness value of 120HB, these gaskets provide reliable sealing solutions for high-pressure environments in the oil and gas industry, power generation plants, and chemical processing facilities. By incorporating a metal-to-metal sealing principle and a modified octagonal cross-section, the RX series ensures gas-tight seals while minimizing the risk of extrusion and leakage. With their ability to withstand extreme conditions, the RX series RJGs offer enhanced safety, reduced downtime, and improved operational efficiency.
