Low-emission packing is a critical sealing solution for various industrial applications, including valves, pumps. Our packing is made from high-quality materials like PTFE, expanded graphite fibers (with over 98% carbon content), and reinforced with Inconel for added strength. With its excellent density and surface texture, it achieves very low friction and leakage rates, even under extreme conditions. Our packing meets important industry standards like TA Luft and is certified by API 622, ISO 15848-1, and others, demonstrating its high quality and effectiveness in reducing emissions.
The Forged Gate Valve Packing Supplier offers a premium packing solution for Class 2500 LB gate valves. This packing set complies with ISO 15848-1 and API 622 standards, ensuring low emissions and high performance. Made from high-quality graphite and reinforced with Inconel 600, the packing features 7 rings with dimensions of 65 mm ID and 85 mm OD. It is designed to provide excellent sealing under extreme conditions.
The Class 2500 LB Ball Valve Seat Factory specializes in producing high-performance Graphite Seats for hard seal ball valves. These seats are reinforced with Inconel 600 wire, ensuring robustness and reliability. Designed to maintain excellent sealing properties under extreme high-temperature and high-pressure conditions, these seats are ideal for critical industrial applications where durability and precision are paramount.
The China Gate Valve Graphite Packing Plant offers a high-quality Low Emission Packing Set designed for Class 600 LB gate valves. This packing set meets stringent industry standards, including ISO 15848-1, TA-Luft, and API 622, ensuring minimal emissions and superior performance. With an inner diameter (ID) of 65 mm and an outer diameter (OD) of 85 mm, it is engineered to withstand a maximum pressure of 25 MPa. This durable and reliable packing set is ideal for applications requiring low emissions and high pressure resistance.
The China Orbit Ball Valve Packing Factory specializes in producing low-emission packing sets for orbit ball valves. These packing sets are designed to meet the stringent requirements of TA-Luft and ISO 15848, ensuring minimal fugitive emissions and high performance. Each set features five rings made from high-quality graphite, reinforced with Inconel 600 for enhanced durability and corrosion resistance. The packing has an inner diameter of 32 mm and an outer diameter of 48 mm, making it suitable for a wide range of orbit ball valve applications.

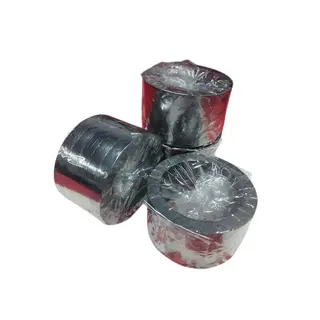

The China Expanded Graphite Packing Set Manufacturer produces high-quality packing sets designed to meet stringent industry standards. These packing sets comply with ISO 15848 and API 622, ensuring low fugitive emissions and high performance. Each set features an inner diameter of 65 mm and an outer diameter of 85 mm, with a maximum operating pressure of 45 MPa. The packing is reinforced with Inconel wire, providing enhanced strength and durability.

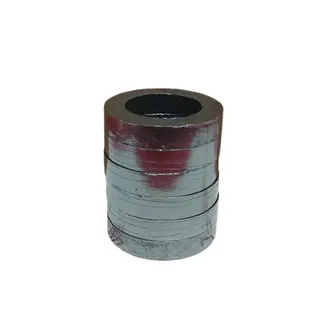

The Forged Steel Valve Packing Set Supplier offers high-performance, low-emission packing solutions designed for API 602 high-pressure self-sealing valves. These packing sets are manufactured with high-quality graphite and adhere to stringent standards such as ISO 15848 and API 622, ensuring minimal emissions and superior sealing capabilities. Each set features an inner diameter of 34 mm and an outer diameter of 48 mm, making them perfectly suited for applications requiring high pressure and reliability.

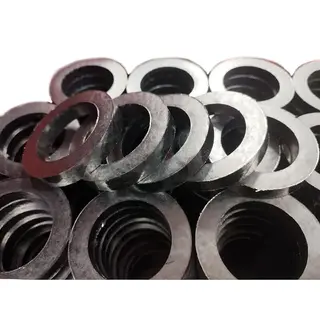

The Cryogenic Gate Valve Packing Factory specializes in producing low-emission packing solutions for Class 600 LB cryogenic gate valves. These packing sets comply with stringent standards such as ISO 15848-1 and TA-Luft, ensuring minimal emissions and high performance in cryogenic applications. Each set features graphite packing with an inner diameter of 46 mm and an outer diameter of 66 mm, designed to withstand extreme low temperatures while maintaining excellent sealing properties.

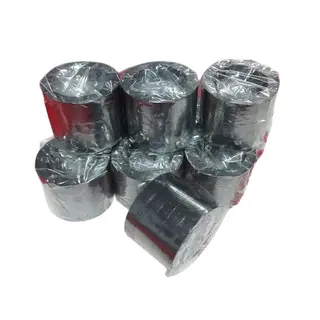

The Low Emission Gate Valve Packing Set Plant offers a high-performance solution for gate valve applications. This plant produces packing sets with an inner diameter of 48 mm and an outer diameter of 68 mm, featuring five packing rings made from high-quality graphite reinforced with Inconel 600/625. The combination of graphite and Inconel ensures excellent thermal stability, corrosion resistance, and low emission performance, making it ideal for demanding industrial environments.

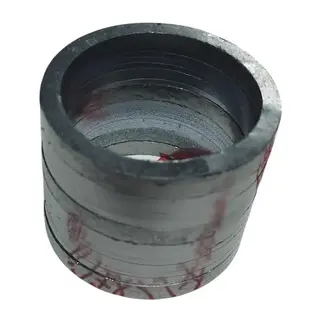

The HighPressure Ball Valve Packing Supplier offers a low emission packing set designed for highpressure hardseal ball valves. This packing set features 8 graphite rings with an inner diameter (ID) of 50 mm and an outer diameter (OD) of 60 mm. It is engineered to operate at a maximum pressure of 25 MPa and complies with the ISO 15848 standard for low fugitive emissions.

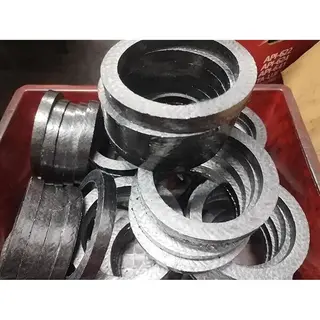

The Low Temperature Gate Valve Packing Supplier offers a high-performance packing set designed for gate valves operating in low-temperature environments. This packing set features 5 graphite rings reinforced with Inconel, ensuring durability and reliability. With an inner diameter (ID) of 110 mm and an outer diameter (OD) of 140 mm, it is engineered to meet stringent emission standards such as TA-Luft and ISO 15848. The low emission design minimizes fugitive emissions, making it an ideal choice for applications requiring environmental compliance and efficient sealing performance.

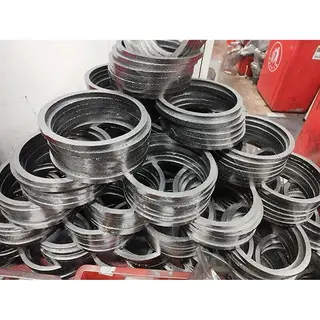

The Low Temperature Butterfly Valve Packing Factory specializes in producing high-quality graphite packing sets tailored for butterfly valves. These sets feature 6 graphite rings, each with an inner diameter (ID) of 160 mm and an outer diameter (OD) of 180 mm. Designed to operate at a maximum pressure of 25 MPa, the packing sets are engineered to minimize fugitive emissions, adhering to stringent standards such as TA-Luft and ISO 15848. This makes them an ideal choice for applications requiring low emission and reliable sealing performance in low-temperature environments.

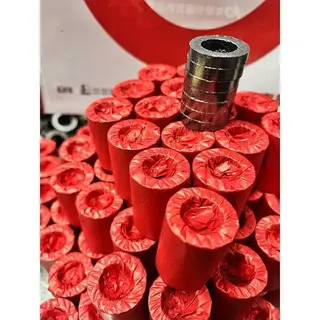

The High Pressure SelfSealing Valve Packing Plant produces a low emission packing set that meets ISO 15848 standards. This set includes 7 rings made from graphite, reinforced with metal wire, ensuring durability and reliability under highpressure conditions. With an inner diameter (ID) of 20 mm and an outer diameter (OD) of 30 mm, it is designed to operate at a maximum pressure of 25 MPa. The packing set is selfsealing, which enhances its sealing performance and reduces the risk of fugitive emissions.
ISO 15848 standardizes the measurement, testing, and evaluation of industrial valve fugitive emissions. It is divided into two parts:
ISO 15848-1: Defines test procedures for valve type testing.
ISO 15848-2: Specifies requirements for valve product manufacturing.
The German fugitive emission control law TA-LUFT VDI 2440 defines leakage rates, testing, and methods.
TA-LUFT and VDI 2440: Require flange connections to meet a test pressure of 1 bar with a leakage rate less than 10−4 mbar × l/(s × m).
VDI 2200: Specifies selection, calculation, design, installation, and testing of flange connections. It references VDI 2440 for leakage rates and includes burst pressure tests to prevent flange breakage and sudden leakage.
The Clean Air Act mandates that valves, pumps, and agitators in the United States comply with EPA Method 21 (blower method) for leakage testing, with consistent testing methods.
API 622 is the second edition of the international performance test for disk root materials. It includes:
1510 mechanical cycles and 5 thermal cycles.
Temperature range: Room temperature to 260°C (500°F).
Pressure range: 0 to 600 psi (0-41 bar).
Allowable leakage rate: 100 ppm under carbon equivalent testing.
The first edition of API 624 standardizes type tests for fugitive emissions of valves with graphite seals. It includes:
Up and down motion and rotation of valves with a maximum diameter of 24 inches.
Temperature up to 260°C (500°F).
310 mechanical cycles and 3 thermal cycles.
Maximum allowable leakage rate: 100 ppm.
Valves must first be tested according to API 622 with a temperature range of -29°C to 538°C (-20°F to 1000°F).
