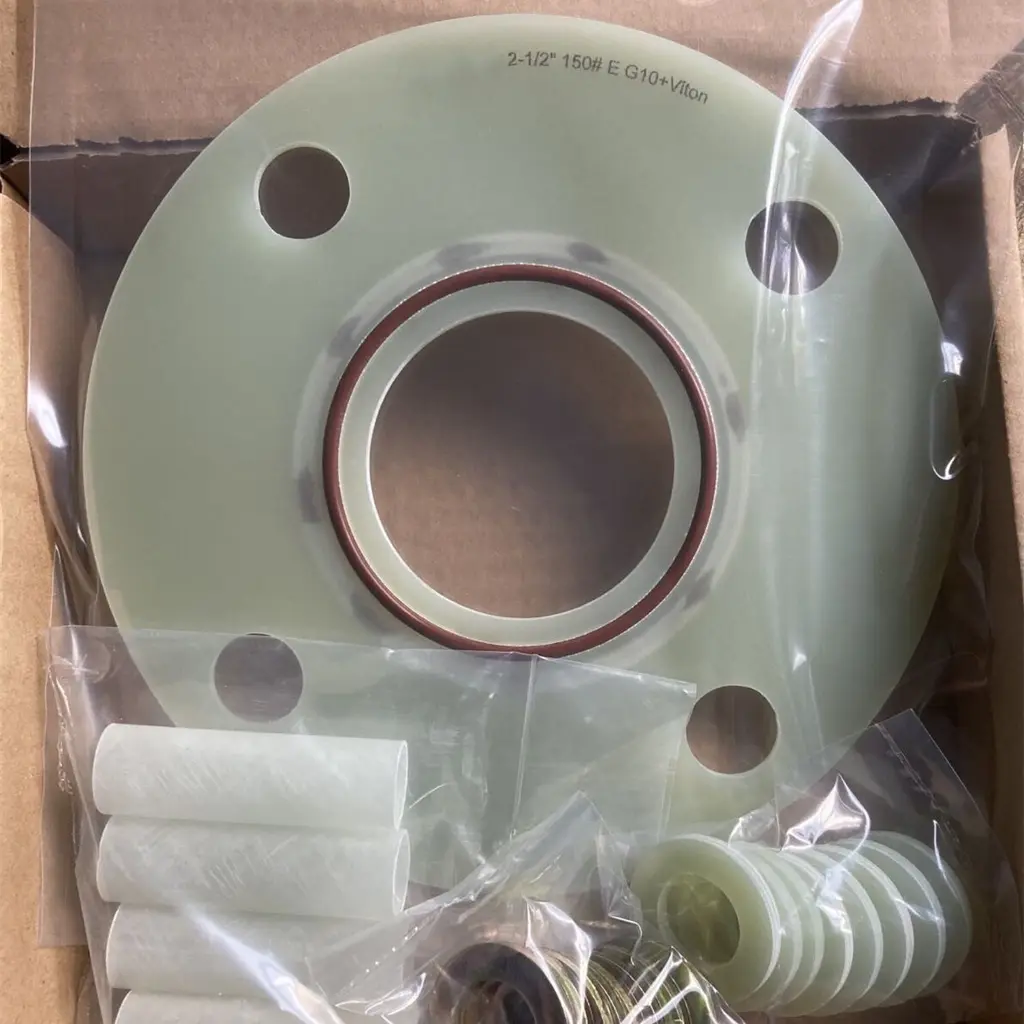

GRE Insulating Gasket Kit, 2 1/2 Inch, Low Pressure Flange

Key Specifications / Features

Model No.: QS 23 G 104

GRE Insulating Gasket Kit in Size 2 1/2 Inch Designed for Low Pressure Flange, Type E , Retainer GRE, Seal Viton, Sleeves GRE, Backup Zinc-plated Steel

Request a quote

Detail Information

Product : GRE Insulating Gasket Kit
Size: 2 1/2 Inch
Class: 150LB
Retainer : G10 (GRE)
Seal: Viton
Sleeves: G10 (GRE)
Washer Isolating: G10 (GRE)
Backup: Zinc-plated Steel
Type : E
Design: For Low Pressure Flange
