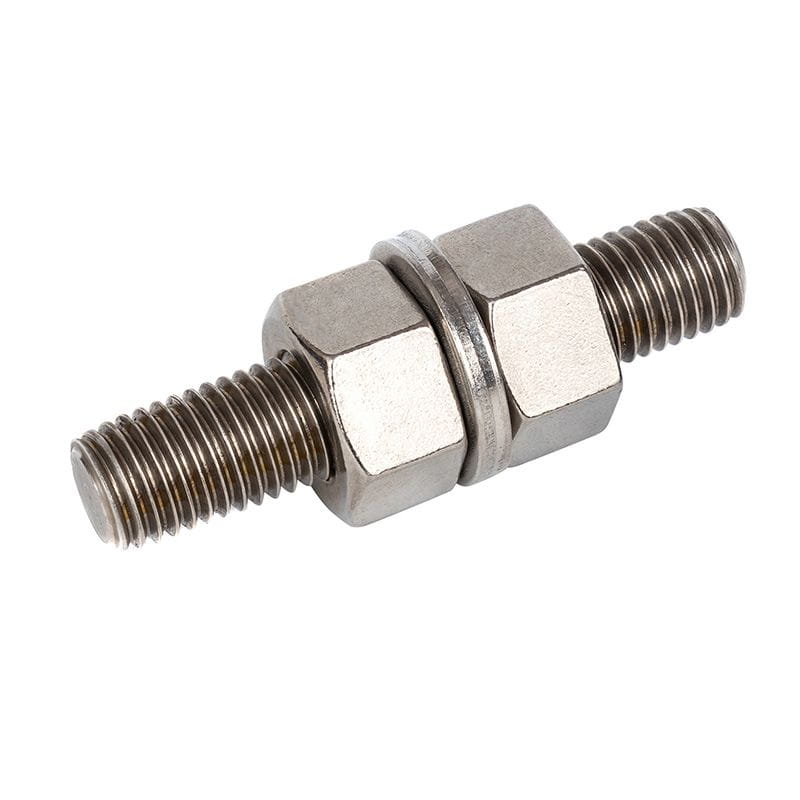

Continuous Threaded Stud Bolt, 7/8 Inch, 120mm, 9 UNC, 2 Nuts, 2 Washers
Continuous Threaded Stud Bolt, 7/8 Inch, 120mm, 9 UNC, 2 Nuts, 2 Washers

Key Specifications / Features

Model No.: QS 23 F 55
Hits: 22
Continuous Threaded Stud Bolt according to ASME B18.31.2, Size 7/8 Inch, Length 120 mm, Stud Bolt Material ASTM A193 Gr.B8M Cl.2, Heavy Hex Nut ASTM A194 GR.8M, Thread Standard 9 UNC.
Request a quote
Share:
Tags

Next: High Temperature Stud Bolt, 1 Inch, 2 Heavy Hex Nuts, ASTM A193 B8M

Previous: Fully Threaded Stud Bolt, 2 Heavy Hex Nuts, 2 Washers,Made in China

Detail Information

Product: Continuous Threaded Stud Bolt
Size: 7/8 Inch
Length: 120 mm
Material:ASTM A193 Gr.B8M Cl.2 / ASTM A194 GR.8M
Thread Standard: 9 UNC
Manufacture Standard: ASME B18.31.2
Surface Treatment: Non
Remark: One Stud Bolt with Two Heavy Hex Nuts and Two Washers
